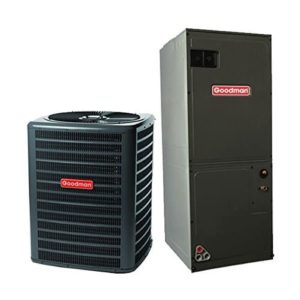

1.5 Ton 14 SEER Goodman A/C Straight Cool System GSX140181 & ARUF25B14 R410a

(This Product Is Discontinued)



Standard Features

• Energy-efficient compressor

• Single-speed condenser fan motor

• Factory-installed filter drier

• Copper tube/aluminum fin coil

• Service valves with sweat connections

and easy-access gauge ports

• Contactor with lug connection

• Ground lug connection

• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with a louvered sound control top

• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

• Steel louver coil guard

• Top and side maintenance access

• Single-panel access to controls with space

provided for field-installed accessories

• When properly anchored, meets the 2010 Florida

Building Code unit integrity requirements for hurri-

cane-type winds (Anchor bracket kits available.)

GSX140181
Capacities
Max Cooling (BTU/h)
SEER/EER
Decibels
18,000
14 / 12
72
Compressor
RLA LRA
6.0

37.5

Condenser Fan Motor
Hp
FLA
1/8
0.7
Refrigeration System Refrigerant

Line Size ¹ Liquid Line Size (“O.D.)

Suction Line Size (“O.D.)

Refrigerant Connection Size Liquid

Valve Size (“O.D.) Suction Valve

Size (“O.D.) ² ³ Valve Type

Charge











Included piston:

⅜”

¾”

⅜”

¾”

Sweat

75

0.051

Electrical Data
Voltage-Phase (60 Hz) Minimum Circuit Ampacity ⁴ Max. Overcurrent Protection ⁵ Min/Max Volts
Conduit
208/230-1
8.2
15 amps 197/253
½” or ¾
Equipment Weight
Shipping Weight
126
141



Product Features

• Check flowrator for cooling and heat pump applications

• Direct drive, multi-speed PSC blower motor

• All-aluminum evaporator coil

• Coil mounting track for quick repositioning

• Cabinet air leakage less than 2.0% at

1.0 inch H₂O when tested in accordance with ASHRAE standard 193

• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in

accordance with ASHRAE standard 193

• AHRI certified; ETL listed

• Rigid SmartFrame™ cabinet

• Horizontal or vertical configuration capabilities

• 21″ depth for easier attic access

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• Screw-less sides and back helps to reduce condensation when installed in humid locations

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Glue-less cabinet insulation retention

• Tool-less filter access

• Field Installed 3 kW – 25 kW electric heater

kits available

ARUF25B14
Nominal Ratings
Cooling (Btu/h) 24,000
Piston Size 0.051
Blower
Diameter 9½”
Width 6″
Coil Connections
Liquid ⅜”
Suction ¾”
Coil Drain Connect (FPT) ¾”
Electrical Data
Voltage 208/230
Min Circuit Ampacity 2.2/2.2
Max. Overcurrent Device (Amps) 15/15
Minimum VAC 197
Maximum VAC 253
Blower Motor
Full Load Amps (FLA) 1.75
Horsepower (HP)
Ship Weight (Lbs.) 100
