The Daikin 19 Series Wall Mount Systems provide energy efficiency and comfort control with an affordable, cost- saving solution. Available in both heat pump and cooling only models, these systems feature streamlined, wall- mounted indoor units paired with quiet and compact outdoor units.
Wall-mounted units are simple to install. The fl exible design blends discretely with any home décor and is ideal for single room enhancements, spaces requiring additional heating or cooling, and additions. The air direction and fl ow rate are adjusted so that the air will not blow directly at people in the room.
● Inverter Compressor
● Precharged for up to 33 ft of Liquid Line
● Self Diagnostics with Digital Display
● Econo Mode / Dry Function / Powerful Mode
● Auto Fan Speed Control
● Anti-Corrosion Treatment on Heat Exchanger
● Wireless Backlit, IR Remote Controller
● Indoor/Outdoor Unit Quiet Operation
● Auto Restart after Power Failure
● Max Piping (09/12 MBH): 65′ Length, 49′ Height
● Max Piping (18/24 MBH): 98′ Length, 66′ Height
Premium comfort features:
›› Energy Efﬁcient – Up to 19 SEER / 9.0 HSPF / 12.5 EER for ultra-efficient cooling and heating operation and reduced operating costs compared to conventional lower-efficiency systems.
›› Cooling Range 50° – 115° F (Extended operation to -4° – 115° F with facility setting and wind baffle)
›› Heating Range 5° – 65° F
Ideal solution for:
›› Renovations, remodeling and new construction
›› A perfect alternative to noisy and inefficient window or through-the-wall air conditioner units
›› Sun rooms, basements, attics, garages, hot or cold rooms, and more
›› Rooms where floor space comes at a premium or is not available for other application
›› Ceiling void or attic does not allow for a viable duct run option
›› Cooling Only models are an excellent value for space not requiring heating

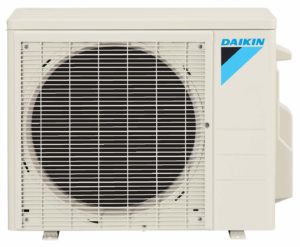

Outdoor Unit Features:
Anti-Corrosion Treatment on Heat Exchanger
Quick Warming Function – Prevents the compressor from pumping liquid refrigerant in
low-ambient conditions. (Heat pumps only)
Automatic Defrosting – Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring
optimum heating performance.
Our outdoor unit drain pans have up to 14 holes which allows for effective drainage of condensation. In some case, this improved drain pan design eliminates the need for drain pan heaters, resulting in higher efficiencies in low ambient temperatures.
Indoor Unit Features:
Daikin Comfort App – Easily control your system from anywhere in the world or the comfort of your living room.
Auto-Restart – The unit memorizes the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically returnto the same operating conditions when the power is restored.
Titanium Apatite Photocatalytic Air Purifying Filter – This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a
single highly effective unit.
|Unit Size||Indoor Unit Model # / Dimensions
|Outdoor Unit Model # / Dimensions
|Efficiency Rating||MOCP||Line Size||Lowest Sound Level (dB(A))||Weight (lbs)||AHRI #|
|18,000||FTX18NMVJU||RX18NMVJU||Up to 18 SEER / 12.5 EER / 9 HPSF||20||1/4 X 1/2||33||54||27||97||8064267|
|11-5/8 x 39 x 10-3/8||28-5/16 x 34-1/4 x 12-5/8|
