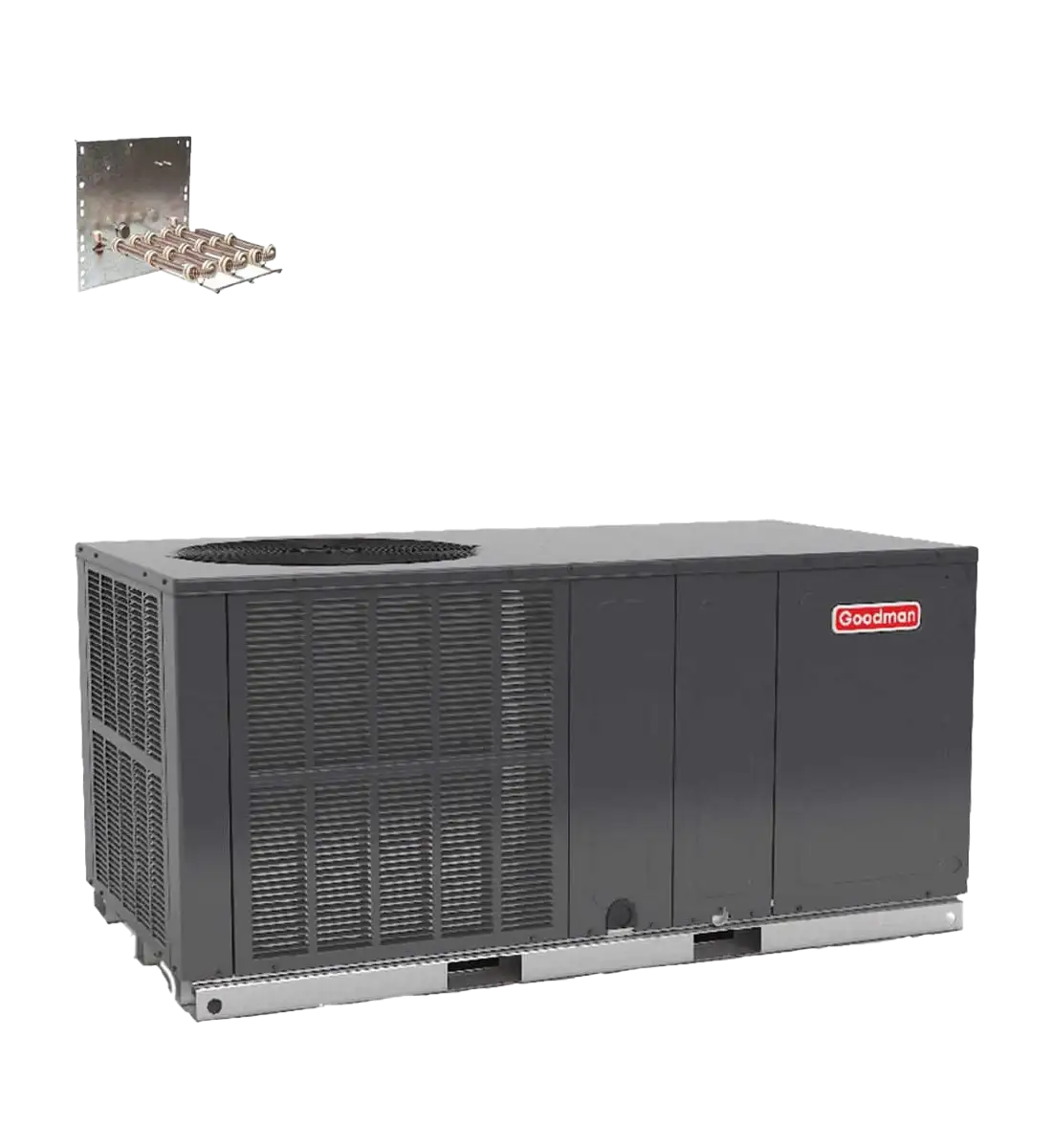

3.5 Ton 13.4 SEER2 Goodman Heat Pump Package Unit GPHH34241

A packaged heat pump with a capacity of 3.5 tons may be the solution you’re looking for. These units combine the indoor and outdoor components of a traditional split-system heat pump into a single, compact design, making them easy to install and eliminating the need for external fans or ductwork.

In heating mode, the 3.5 ton heat pump absorbs heat from the outside air or ground using a refrigerant, which it then releases inside to increase the temperature. In cooling mode, the heat pump uses the same refrigerant and a component called a reversing valve to draw heat from the indoor air and release it outside, lowering the temperature inside.

Packaged heat pumps can serve as a great alternative to central air systems or gas furnaces, particularly for those seeking a single, energy-efficient system for both heating and cooling. These heat pumps offer the convenience and energy-saving benefits of a packaged system, especially in warmer climates and during the heating season when traditional heating systems may not be needed as frequently. They are also a quietly operating solution for your heating and cooling needs.

3.5 Ton 13.4 SEER2 Goodman Heat Pump Package Unit GPHH34241

Standard Features
• Energy-efficient scroll compressor
• Multi-speed ECM indoor blower motor
• Quiet horizontal discharge
• All-aluminum evaporator coil
• Copper tube/aluminum fin condenser coil
• Totally enclosed, permanently lubricated condenser fan motor
• Fully charged system
• Electric heat kit available as a field-installed option
• AHRI certified; ETL listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with architectural gray powder-paint finish
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Fully insulated blower compartment with convenient access panels
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• Louvered condenser coil protection
• One footprint for all tonnages
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

GPHH34241

GPHH34241
Cooling Capacity
Total BTU/h 39,000
Sensible BTU/h 30,615
SEER2/EER2 13.4 / 10.6
AHRI Numbers 208842407
Heating Capacity
BTU/h (47°F) 37,200
C.O.P. (47°F) 3.68
BTU/h (17°F) 21,600
C.O.P. (17°F) 2.42
HSPF2 6.70
Evaporator Motor
Type ECM
Wheel (D x W) 10 x 8
Cooling CFM3 1,300
Fan-Only CFM 1,061
No. of Speeds 5
Horsepower - RPM 1/2 - 1050
Evaporator Coil
Face Area (ft2) 6.23
Rows Deep 4
Fins per Inch 14
Metering Device Type Piston
Drain Size (NPT) ¾"
Refrigerant Charge (oz.) 132
Condenser Fan
Horsepower - RPM 1/4 - 1075
Fan Diameter 22
# Fan Blades 4
Condenser Coil
Face Area (ft2) 17.02
Rows Deep 1
Fins per Inch 24
Metering Device Type Piston
Compressor
Quantity 1
Type Scroll
Stage Single
Sound Power dBA 78
Electrical Data
Compressor RLA/LRA 16.7 / 109
Voltage/Phase (60 Hz) 208-230 / 1
Indoor Blower FLA 3.8
Outdoor Fan FLA 1.4
M.C.A.1 26.1
M.O.P.2 40
Operating Weight (lbs) 375
Ship Weight (lbs) 387



$3,931.00
