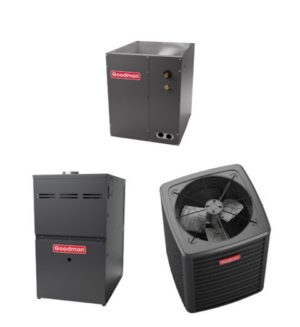

3.5 Ton 15 SEER2 80% 80 kbtu Vertical Goodman AC Gas Furnace System GSXN404210+CAPF4961C6+GM9S800804CN+TXV
GSXN404210
Standard Features
• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
GM9S800804CN
Standard Features
• Heavy-duty aluminized-steel dual- diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD)
on or after October 1, 2019.
• AHRI Certified; ETL Listed
Cabinet Features
• Installation:
– GM9S80-upflow, horizontal left or right
– GC9S80- downflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Foil faced insulated heat exchanger
CAPF4961C6
Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed
| GM9S800804CN | GSXN404210 | CAPF4961C6 | |||||
| Heating Capacity | Capacities | Unit Dimensions | |||||
| Input | 80,000 | Nominal Cooling (BTU/h) | 42,000 | W | 21" | ||
| Natural Gas Output | 64,000 | Decibels (dBA) | 71 | D | 21⅛" | ||
| LP Gas Output | 64,000 | Compressor | H | 30" | |||
| AFUE ¹ | 80 | RLA | 17.7 | Nominal Tons | 4-5 | ||
| Available AC @ 0.5” ESP | 4 | LRA | 110.2 | ||||
| Temperature Rise Range (°F) | 35-65 | Stage | Single | Connection | |||
| Circulator Blower | Type | Scroll | Liquid | ⅜” | |||
| Size (D x W) | 10" x 10" | Condenser Fan Motor | Suction | ⅞" | |||
| Horsepower @1075 RPM | 0.75 | Motor Type | PSC | Piston Size | 0.093 | ||
| Speed | 9 | Horsepower | ⅙ | Ship Weight (lbs) | 76 | ||
| Vent Diameter ² | 4" | FLA | 0.97 | ||||
| No. of Burners | 4 | Refrigeration System | |||||
| Electrical Data | Refrigerant Line Size | ||||||
| Min. Circuit Ampacity | 12.45 | Liquid Line Size (“O.D.) | ⅜" | ||||
| Max. Overcurrent Device (amps) | 15 | Suction Line Size (“O.D.) | ⅞" | ||||
| Ship Weight (lbs) | 132 | Refrigerant Connection Size | |||||
| Liquid Valve Size (“O.D.) | ⅜" | ||||||
| Suction Valve Size (“O.D.) | ⅞" | ||||||
| Valve Type | Sweat | ||||||
| Refrigerant Charge | 107 | ||||||
| Electrical Data | |||||||
| Voltage-Phase (60 Hz) | 208/230-1 | ||||||
| Minimum Circuit Ampacity | 23.1 | ||||||
| Max. Overcurrent Protection | 40 | ||||||
| Min / Max Volts | 197/253 | ||||||
| Electrical Conduit Size | ½" or ¾" | ||||||
| Equipment Weight (lbs) | 226 | ||||||
| Ship Weight (lbs) | 248 | ||||||
$4,056.00
Availability: In stock
-
