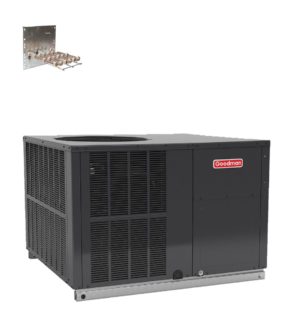

3 Ton 14 SEER Goodman Heat Pump Package Unit GPH1436M41 Mulitposition

$2,678.00

Clear

$2,678.00

Clear
Compare

Description

Standard Features

• Energy-efficient scroll compressor

• Multi-speed ECM indoor blower motor

• Convertible airflow: horizontal or downflow

• Copper tube/aluminum fin condenser coil

• All-Aluminum evaporator coil

• Liquid-line filter drier

• 5 kW to 20 kW electric heat kit available as a field-installed option

AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish

• Aluminum foil-facing internal insulation reinforced with fiberglass scrim

• Fully insulated air-handling compartment with convenient access panels

• Louvered condenser coil protection

• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193

• One footprint for all tonnages

.

GPH1436M41
Cooling Capacity
Total BTU/h 34,400
Sensible BTU/h 26,200
SEER / EER 14/11
Decibels 81
AHRI #s 7470161
Heating Capacity
BTU/h (47°F) 33,200
C.O.P (47°F) 3.6
BTU/h (17°F) 19,000
C.O.P (17°F) 2.2
HSPF 8.0
Evaporator Motor
Type ECM
Wheel (D x W) 10 x 9
Nominal Cooling CFM 1,200
FLA / LRA 4.3 / —
No. of Speeds 5
Horsepower – RPM ½ – 1,050
Evaporator Coil
Face Area (ft²) 4.55
Rows Deep/ Fin per Inch 4 / 14
Drain Size (NPT) ¾”
R-410A Refrigerant Charge (oz.) 115
Condenser Fan / Coil
Horsepower – RPM ¼ – 830
FLA/LRA 1.4 / 3.0
Fan Diameter / # Fan Blades 22 / 4
Face Area (ft²) 12.21
Rows Deep/ Fin per Inch 2 / 16
Compressor
Quantity 1
Type Scroll
Stage Single
Electrical Data
Voltage/ Phase (60 Hz) 208-230/1
Compressor RLA/ LRA 16.7 / 79
Total Unit Amps 22.4
Min. Circuit Ampacity¹ 26.6
Max. Overcurrent Protection² 40 amps
Shipping Weight (lbs) 400

Additional information

Weight 400 lbs
Dimensions 47 × 51 × 34.75 in
