3 Ton 15 SEER2 80% 100 kbtu Vertical Goodman AC Gas Furnace System GSXN403610+GM9S801005CN+CAPTA3626C4

Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for
hurricane-type winds
(Anchor bracket kits available.)


Standard Features

• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Compatible with any single-stage thermostat
• Self-diagnostic control board with constant memory fault code history output to a triple
7-segment display
• Color-coded low-voltage terminals with provisions for
electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating
or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to
a mitigation fee of up to
$450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom
air-inlet applications

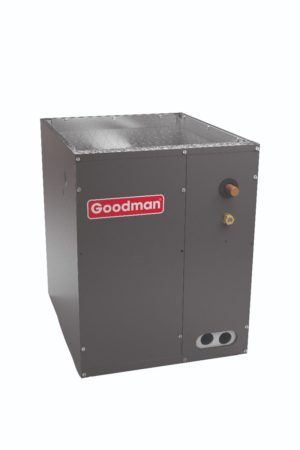

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT, CAPTA, CHPT, CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
• CAPF, CAPFA, CAUF, CAUFA, CHPF, CSCF models feature a check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21” depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

California Residents- Proposition 65

GM9S800603BN GSXN403010 CAPFA3626B6
Heating Capacity Capacities Unit Dimensions
Input 60,000 Nominal Cooling (BTU/h) 30,000 W 17½"
Natural Gas Output 48,000 Decibels (dBA) 72.0 D 21"
LP Gas Output 48,000 Compressor H 26"
AFUE ¹ 80 RLA 11.6 A 22"
Available AC @ 0.5” ESP 3 LRA 59 Nominal Tons 3
Temperature Rise Range (°F) 20-50 Stage Single Connection
Circulator Blower Type Rotary Liquid ⅜”
Size  (D x W) 10" x 8" Condenser Fan Motor Suction 7/8”
Horsepower @1075 RPM 0.5 Motor Type PSC Piston Size 0.065
Speed 9 Horsepower 1/6 Ship Weight (lbs) 47
Vent Diameter ² 4" FLA 0.95
No. of Burners 3 Refrigeration System
Electrical Data Refrigerant Line Size
Min. Circuit Ampacity ³ 8.7 Liquid Line Size (“O.D.) ⅜"
Max. Overcurrent Device (amps) ⁴ 15 Suction Line Size (“O.D.) ⅞"
Ship Weight (lbs) 100 Refrigerant Connection Size
Liquid Valve Size (“O.D.) ⅜"
Suction Valve Size (“O.D.) ⅞"
Valve Type Sweat
Refrigerant Charge 79
Electrical Data
Voltage-Phase (60 Hz) 208/230-1
Minimum Circuit Ampacity 15.5
Max. Overcurrent Protection 25
Min / Max Volts 197/253
Electrical Conduit Size ½" or ¾"
Equipment Weight (lbs) 156
Ship Weight (lbs) 180
