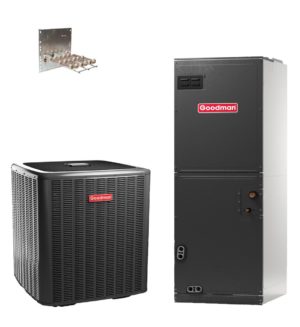

3 Ton 16 SEER Goodman HEAT PUMP Split System GSZ160361 & ASPT37C14 R-410a

$3,034.00
Call for Availability

Out of stock

Compare

Description

Standard Features

• High-efficiency scroll compressor

• SmartShift® technology to ensure quiet reliable defrost

• Single-speed ECM condenser fan motor

• Factory-installed bi-flow liquid-line filter drier

• Factory-installed suction-line accumulator

• Factory-installed compressor crankcase heater

• Factory-installed high-capacity muffler

• High- and low-pressure switches

• Service valves with sweat connections and easy access to gauge ports

• Copper tube/enhanced aluminum fin coil

• Fully charged for 15’ of tubing length

Contactor with lug connection

• Ground lug connection

AHRI Certified; ETL Listed

Cabinet Features

• Goodman® brand sound control top design

• Steel louver coil guard

• Heavy-gauge galvanized-steel cabinet

• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

• Top and side maintenance access

• Service ports and controls are

accessible while unit is operating

• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for
hurricane-type winds

(Anchor bracket kits available.)

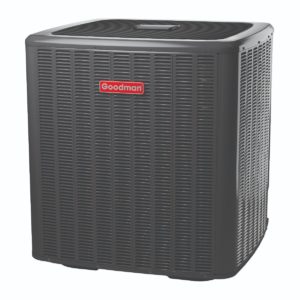

 GSZ160361B
Nominal Capacities
Cooling (BTU/h)36,000
Heating (BTU/h)36,000
Decibels73
Compressor
RLA14.1
LRA72.2
TypeScroll
Condenser Fan Motor
Horsepower1/4
FLA1.30
Refrigeration System
Refrigerant Line Size¹
Liquid Line Size (“O.D.)3/8″
Suction Line Size (“O.D.)7/8″
Refrigerant Connection Size
Liquid Valve Size (“O.D.)3/8″
Suction Valve Size (“O.D.)7/8″
Valve Connection TypeSweat
Refrigerant Charge (oz.)175
Electrical Data
Volts/Phase (60 Hz)208/230
Minimum Circuit Ampacity ²18.9
Max. Overcurrent Protection ³30
Min / Max Volts197/253
Electrical Conduit Size1/2″ or 3/4″
Unit Weights
Equipment Weight220
Shipping Weight240
ENERGY STAR® Certified ^ Yes

Product Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications

• Direct drive, multi-speed ECM blower motor

• All-aluminum evaporator coil

• Coil mounting track for quick repositioning

• Optimized for use with R-410A refrigerant

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in

accordance with ASHRAE standard 193

• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in

accordance with ASHRAE standard 193

• AHRI certified; ETL listed

• Rigid SmartFrame™ cabinet

• Horizontal or vertical configuration capabilities

• 21” depth for easier attic access

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• Screw-less sides and back helps to reduce condensation when installed in humid locations

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Glue-less cabinet insulation retention

• Tool-less filter access

• Field Installed 3 kW – 25 kW electric heater

kits available

 ASPT37C14
Nominal Ratings36,000
Cooling (Btu/h)
Blower
Diameter10⅝”
Width8″
Coil Connections
Liquid⅜”
Suction⅞”
Coil Drain Connect (FPT)¾”
Electrical Data
Voltage208/230
Minimum Circuit Ampacity5.6 / 5.6
Max. Overcurrent Device (Amps)15 / 15
Minimum VAC197
Maximum VAC253
Blower Motor
Full Load Amps (FLA)4.5
Horsepower (HP)¾
Ship Weight (Lbs.)144



Additional information

Weight254 lbs
