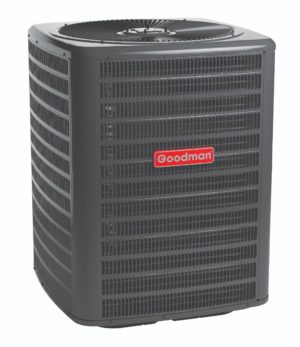

5 Ton 14 SEER Goodman A/C Straight Cool Condenser GSX140601 R410a | HVAC Warehouse

5 Ton 14 SEER Goodman A/C Straight Cool Condenser GSX140601 R410a

$1,871.00

Out of stock

$1,871.00

Out of stock

Compare

Description

5 Ton 14 SEER Goodman A/C Straight Cool Condenser GSX14060 R410a

Standard Features
• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2010 Florida
Building Code unit integrity requirements for hurri-
cane-type winds (Anchor bracket kits available.)

GSX140601
Capacities
Nom Cool (BTU/h)60,000
SEER/EER14 / 11.7
Decibels75
Compressor
RLA25.0
LRA134
Condenser Fan Motor
Hp1/4
FLA1.3
Refrigeration System
Refrigerant Line Size ¹
Liquid Line Size (“O.D.)⅜”
Suction Line Size (“O.D.)1⅛”
Refrigerant Connection Size
Liquid Valve Size (“O.D.)⅜”
Suction Valve Size (“O.D.) ² ³⅞”
Valve TypeSweat
Charge120
Included piston:0.088
Electrical Data
Voltage-Phase (60 Hz)208/230-1
Minimum Circuit Ampacity ⁴32.6
Max. Overcurrent Protection ⁵50 amps
Min/Max Volts197/253
Conduit½” or ¾”
Equipment Weight260
Shipping Weight280

Additional information

Weight280 lbs
Dimensions35.5 × 35.5 × 38.25 in
SEER

Tonnage
