5 Ton 14 SEER Goodman Straight Cool Package Unit GPC1460M41 Mulitposition | HVAC Warehouse

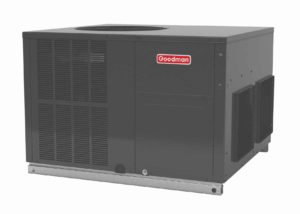

5 Ton 14 SEER Goodman Straight Cool Package Unit GPC1460M41 Mulitposition

$3,440.00

Clear

-

$3,440.00

Clear

-

Compare

Description

Standard Features
• Energy-efficient compressor
• Multi-speed ECM indoor blower motor
• Convertible airflow: horizontal or downflow application
• Copper tube/aluminum fin condenser coil
• All-aluminum evaporator coil
• Totally enclosed, permanently lubricated condenser fan motor
• 5 kW to 20 kW electric heat kit available as a field-installed option
• AHRI Certified; ETL Listed

GPC1460M41
Cooling Capacity
Total BTU/h 56,000
Sensible BTU/h 41,000
SEER / EER 14 / 11.0
Decibels 80.2
AHRI Numbers 7513343
Evaporator Motor
Type ECM
Nominal Cooling CFM 1,700
Wheel (DxW) 10 x 9
No. of Speeds 5
Horsepower – RPM 1.0
Evaporator Coil
Face Area (ft²) 6.17
Rows Deep/ Fin per Inch 4/ 14
Drain Size (NPT) ¾”
Refrigerant Charge (oz.) 177
Condenser Fan / Coil
Horsepower – RPM ⅓ – 1120
Fan Diameter / # Fan Blades 22 / 3
Face Area (ft²) 20.67
Rows Deep/ Fins per Inch 2 / 16
Compressor
Quantity 1
Type Scroll
Stage Single
Electrical Data
Voltage-Phase 208/230-1
Compressor RLA/LRA 25.0 / 134
Indoor Blower FLA 7.0
Outdoor Fan FLA / LRA 2.0 / 4.4
Total Unit Amps 34.0
Min. Circuit Ampacity¹ 40.3
Max. Overcurrent Protection² 60 amps
Ship Weight (lbs) 458

¹ Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
² May use fuses or HACR-type circuit breakers of the same size as noted.
Note: Always check the S&R plate for electrical data on the unit being installed.

Additional information

Weight 463 lbs
Dimensions 51 × 42 × 42.75 in
