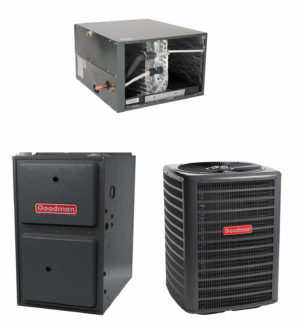

5 Ton 14 SEER2 80% 120 kbtu Horizontal Goodman AC Gas Furnace System GSXN40601 + CHPT4860D4 + GM9S801205DN

SKU: GSXN40601+CHPT4860D4+GM9S801205DN Categories , Tags , , ,

$4,808.00
 Add to Cart for Discounted Price

In stock

GSXN406010

Standard Features
• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)



GM9S801205DN

Standard Features

• Heavy-duty aluminized-steel dual- diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD)
on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Installation:
– GM9S80-upflow, horizontal left or right
– GC9S80- downflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

CHPT4860D4

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT, CAPTA, CHPT, CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
• CAPF, CAPFA, CAUF, CAUFA, CHPF, CSCF models feature a check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21” depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

GM9S801205DN GSXN406010 CHPT4860D4
Heating Capacity Capacities Unit Dimensions
Input 120,000 Nominal Cooling (BTU/h) 60,000 W 26”
Natural Gas Output 96,000 Decibels (dBA) 75 D 21⅛"
LP Gas Output 96,000 Compressor H 24½"
AFUE ¹ 80 RLA 25.6 Nominal Tons 3.5-5
Available AC @ 0.5” ESP 5 LRA 150
Temperature Rise Range (°F) 40-70 Stage Single Connection
Circulator Blower Type Scroll Liquid ⅜”
Size  (D x W) 10” x 10” Condenser Fan Motor Suction ⅞"
Horsepower @1075 RPM 1 Motor Type PSC Ship Weight (lbs) 47
Speed 9 Horsepower ¼
Vent Diameter ² 4" FLA 1.3
No. of Burners 6 Refrigeration System
Electrical Data Refrigerant Line Size
Min. Circuit Ampacity 15.3 Liquid Line Size (“O.D.) ⅜"
Max. Overcurrent Device (amps) 20 Suction Line Size (“O.D.) ⅞"
Ship Weight (lbs) 132 Refrigerant Connection Size
Liquid Valve Size (“O.D.) ⅜"
Suction Valve Size (“O.D.) ⅞"
Valve Type Sweat
Refrigerant Charge 181
Electrical Data
Voltage-Phase (60 Hz) 208/230-1
Minimum Circuit Ampacity 33.3
Max. Overcurrent Protection 50
Min / Max Volts 197/253
Electrical Conduit Size ½" or ¾"
Equipment Weight (lbs) 260
Ship Weight (lbs) 282
