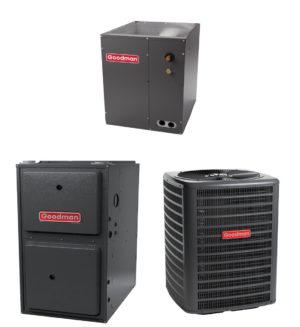

5 Ton 16 SEER 96% 120 kbtu Vertical Goodman AC Gas Furnace System GSX160601+CAPF4961D6+GMVC961205DN

Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for
hurricane-type winds
(Anchor bracket kits available.)

Nominal Cooling (BTU/h) 54,000
Decibels 73
RLA 21.4
LRA 135
Condenser Fan Motor
Horsepower 1/3
FLA 2.80
Refrigeration System
Refrigerant Line Size ¹
Liquid Line Size (“O.D.) ⅜”
Suction Line Size (“O.D.) ⅞”
Refrigerant Connection Size
Liquid Valve Size (“O.D.) ⅜”
Suction Valve Size (“O.D.) ⅞”
Valve Type Sweat
Refrigerant Charge 237
Electrical Data
Voltage-Phase (60 Hz) 208/230-1
Minimum Circuit Ampacity ² 29.6
Max. Overcurrent Protection ³ 50
Min / Max Volts 197/253
Electrical Conduit Size ½” or ¾”
Equipment Weight (lbs) 279
Ship Weight (lbs) 301
ENERGY STAR® Certified



Standard Features

• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Compatible with any single-stage thermostat
• Self-diagnostic control board with constant memory fault code history output to a triple
7-segment display
• Color-coded low-voltage terminals with provisions for
electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating
or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to
a mitigation fee of up to
$450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom
air-inlet applications


Heating Data
High Fire Input¹ 120,000
High Fire Output¹ 115,200
Low-Fire Steady-State Input¹ 84,000
Low-Fire Steady-State Output¹ 80,640
AFUE² 96
Temperature Rise Range (°F) 35 – 65
Vent Diameter³ 2″ – 3″
No. of Burners 6
Circulator Blower
Available AC @ 0.5″ ESP 2 – 5
Size  (D x W) 11″ x 11″
Horsepower @ 1075 RPM 1
Speed VS ECM
Electrical Data
Min. Circuit Ampacity⁴ 14.4
Max. Overcurrent Device (amps)⁵ 20
Shipping Weight (lbs) 156


Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with
R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL list

Model Unit Dimensions Nominal Tons Connection Piston Size* Ship Weight (lbs)
W D H Liquid Suction
CAPF4961D6 24½” 21⅛” 30″ 4-5 ⅜” ⅞” 0.093 76
