Features
• Three operating modes (Intermittent, Continuous and High)
• 100% variable speed
• ISF™ (Insert, Slide and Fix) 6″ (153 mm) dia. collar system
• Advanced proportional supply fan shut-down defrost sequence
• Factory-installed, adjustable hanging strap system
• Dual permanently lubricated PSC motors
• Integrated auxiliary furnace interlock relay
• Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
• Connection terminals for optional wall controls
• Quiet operation

Energy Recovery Core
• Transfers both sensible and latent heat
• Effective in warm and cold climates
• Water washable

Certifications and Standards
• HVI Certified
• CSA C439 Standard (Packaged Heat/ Energy Recovery Ventilators (HRV/ERV))
• CSA Standard CSA 22.2 NO.113-10 (Fans and ventilators)
• UL Standard 1812 2nd Ed. Ducted Heat/Energy Recovery Ventilators (HRV/ERV)

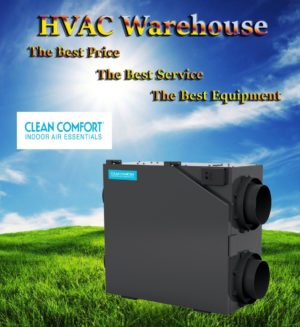

Specifications VE30160
Cabinet
Dimensions 29½”x 22½” x 11⅜”
(749.3 mm x 571.5 mm x 289 mm)
Construction 20-gauge galvanized pre-painted steel corrosion-resistant liner: molded expanded Polystyrene
(EPS) Rated UL94 HF-1
Duct Connections Four, 6″ (152.5 mm) dia. ISF double collar system
Airflow Rates 30 CFM (14 L/s) to 160 CFM (76 L/s)
Motors Two PSC variable-speed backward curved
Maximum RPM 2695; 3/32 HP,
Class F, thermally protected
Voltage 120 VAC @ 60 Hz / 1 Phase
Amperage 1.5 A / 142 W
Electronic Circuit output voltage:
Components 5VDC nominal
RoHS compliant
Heat Exchanger dpoint cross-flow (Enthalpic
Polymer Membrane)
Exchange surface 85 ft2
(7.9 m2)
Dimensions 12″L x 12″W x10″D
(304.8 mm x 304.8 mm x 254 mm)
Construction Corrugated aluminum layers with
advanced polymer membrane,
Recognized UL94 HB
Defrost type Evacuation; activated automatically at 23°F (-5°C)
Filters Two Fiberbond washable
11-11/16″x9-3/4″x5/8″
(297 mm x 248 mm x 16 mm)
Drain Connection ½” (12.7 mm)
Actual Weight 42 lbs (19 Kg)
Shipping Weight 47½ lbs (21.5 Kg)
Optional Wall Controls
Mechanical VHP-RD1, VHP-TC10 or VHP-DC15
Timers VHP-T3 (20, 40, 60 minutes)
