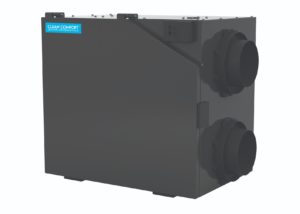

Clean Comfort-70-220 cfm-Energy Recovery Ventilator (ERV) VE70220

SKU: VE70220 Category:

$1,525.00

Out of stock

$1,525.00

Out of stock

Compare
SKU: VE70220 Category:

Description

Features
• Three operating modes (Intermittent, Continuous and High)
• 100% variable speed
• ISF™ (Insert, Slide and Fix) 6″ (153 mm) dia.collar system
• Advanced proportional supply fan shut-down defrost sequence
• Factory-installed, adjustable hanging strap system
• Dual permanently lubricated PSC motors
• Integrated auxiliary furnace interlock relay
• Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
• Connection terminals for optional wall controls
• Quiet operation

Energy Recovery Core
• Transfers both sensible and latent heat
• Effective in warm and cold climates
• Water washable

Optional Accessories
• Matrix 2-in-1 high-performance concentric ventilation hood

Certifications and Standards
• HVI Certified
• CSA C439 Standard (Packaged Heat/Energy Recovery Ventilators (HRV/ERV))
• CSA Standard CSA 22.2 NO.113-10 (Fans and ventilators)
• UL Standard 1812 2nd Ed. Ducted Heat/Energy Recovery Ventilators (HRV/ERV)

Cabinet
Dimensions 29½ “x 22½ ” x 16½”
(749.3 mm x 571.5 mm x 419.1 mm)
Construction 20-gauge galvanized pre-painted
steel corrosion-resistant liner:
molded expanded Polystyrene
(EPS) Rated UL94 HF-1
Duct Connections Four, 6″ (152.5 mm) dia.
ISF double collar system
Airflow Rates 70 CFM (33 L/s) to 220 CFM (104 L/s)
Motors Two PSC variable-speed backward curved
Maximum RPM 2695; 3/32 HP,
Class F, thermally protected
Voltage 120 VAC @ 60 Hz / 1 Phase
Amperage 1.5 A / 142 W
Electronic Circuit output voltage:
Components 5VDC nominal
RoHS compliant
Heat Exchanger dpoint cross-flow (Enthalpic
Polymer Membrane)
Exchange surface 127 ft2 (11.8 m2)
Dimensions 12″L x 12″W x 15″D
(304.8 mm x 304.8 mm x 381 mm)
Construction Corrugated cross-flow polypropylene layers
Recognized UL94 HB and HF-1
Defrost type Evacuation; activated automatically at 23°F (-5°C)
Filters Two Fiberbond washable
11-11/16″x14-3/4″x5/8″
(297 mm x 375 mm x 16 mm)
Drain Connection ½” (12.7 mm)
Actual Weight 50 lbs (22.7 Kg)
Shipping Weight 57½ lbs (26.1 Kg)
Optional Wall Controls
Mechanical VHP-RD1 or VHP-RD3P
Timers VHP-T3 (20, 40, 60 minutes)
