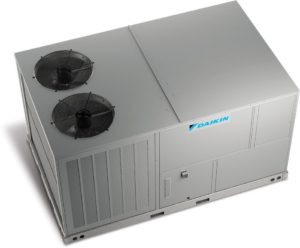

DAIKIN Commercial 10 ton (208/230)3 phase 410 A/C Package DCC120XXX3VXXX

SKU: DCC120XXX3VXXX Categories , Tags ,

Out of stock

$6,300.00
Call for Availability

Out of stock

Compare
SKU: DCC120XXX3VXXX Categories: , Tags: ,

Description

The DCC Packaged Air Conditioner provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations and horizontal or downflow applications.

Dependable compressor One of the most critical components of a packaged air conditioner is the compressor. Daikin brand DCC Packaged Air Conditioners boast high performance, high-efficiency compressors, which operate in tandem with our high efficiency coil. The coil is made of refrigeration-grade copper tubing and aluminum fins in a design that maximizes surface area. These high-quality components together cool effectively. This exceptional construction offers one of our best levels of reliability, durability, and efficiency you’ll find in a compressor.

Heaters, Curbs, and Fresh Air Dampers are sold separately for this system. Please call for pricing.

Call us at  (888) 944-8684 or message us to specify the heat strip needed or if other accessories are needed.

Standard Features

  • R-410A chlorine-freerefrigerant
  • High-efficiency scrollcompressors
  • Two-stage cooling
  • Copper tube / aluminum fin coils(7½ – 10 Ton)
  • Micro-Channel indoor & outdoor coils (12½ Ton)
  • Power block for field wiring
  • High- and low-pressure switches
  • High-capacity, steel-cased filterdrier
  • Heater kits with single-point entry
  • 24-volt terminalstrip
  • Units meet the performance outlined in Table 6.8.1-1 of ASHRAE Standard 90.1-2013
  • AHRI Certified; ETL Listed

 Cabinet Features

  • Heavy-gauge, galvanized- steel cabinet with UV-resistant powder-paint finish
  • Built-in filter rack with standard 2” filters
  • Convertible airflow orientation
  • Easy to service
  • Full perimeter rail
  • Sloped drain pan





 DCC120
***3V***B*
Cooling Capacity
Total BTU/h116,000
Sensible BTU/h84,700
EER / IEER11.3 / 13.0
Decibels83
ARI Reference #s6345712
Evaporator Motor / Coil
Motor Type2-speed Belt Drive
Indoor Nominal CFM3,500
Indoor motor FLA (Cooling)6.4
Horsepower – RPM2.0/1750-1165
Piston Size (Cooling)0.086
Filter Size (Qty)(4) 16 x 24 x 2
Drain Size (NPT)¾”
R-410A Refrigerant Charge  Cir #1 & #2 (oz.)144 / 123
Evaporator Coil Face Area (ft²)10.2
Rows Deep / Fins per Inch4/14
Belt Drive Evap Fan Data
# of Wheels (D x W)(1) 15″ x 15″
Motor Sheave / Blower SheaveVL40 / AK74
BeltAX50
Condenser Fan / Coil
Quantity of Condenser Fan Motors2
Horsepower – RPM⅓  – 1,075
Fan Diameter / # Fan Blades22 / 3
Outdoor Nominal CFM8,200
Face Area (ft²)35.2
Rows Deep – Fins per Inch2 X 2  / 27±1
Compressor
Quantity / Type / Stage Compressor RLA / LRA  ea.
2 / Scroll / 1 16/110.0
Electrical Data
Voltage/Phase/ Frequency208/230-3-60
Standard Motor Max. External Static1.4″
Outdoor Fan RLA  ea.2.00
Min. Circuit Ampacity¹46.3 / 46.3
Max. Overcurrent Protection (amps)²60 / 60
Entrance Power SupplyLocating
Entrance Control VoltageDimple
Operating Weight (lbs)1050
Ship Weight (lbs)1125

Additional information

Weight1125 lbs
Dimensions99.9 × 61.73 × 53.33 in
