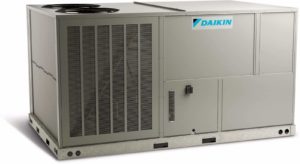

DAIKIN Commercial 7.5 ton (208/230)3 phase 410 A/C Package DCC090XXX3VXXX

SKU: DCC090XXX3VXXX Categories , Tags ,

Out of stock

Call for Availability

Out of stock

SKU: DCC090XXX3VXXX Categories: , Tags: ,


The DCC Packaged Air Conditioner provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations and horizontal or downflow applications.

Dependable compressor One of the most critical components of a packaged air conditioner is the compressor. Daikin brand DCC Packaged Air Conditioners boast high performance, high-efficiency compressors, which operate in tandem with our high efficiency coil. The coil is made of refrigeration-grade copper tubing and aluminum fins in a design that maximizes surface area. These high-quality components together cool effectively. This exceptional construction offers one of our best levels of reliability, durability, and efficiency you’ll find in a compressor.

Heaters, Curbs, and Fresh Air Dampers are sold separately for this system. Please call for pricing.

Call us at  (888) 944-8684 or message us to specify the heat strip needed or if other accessories are needed.

Standard Features

  • R-410A chlorine-freerefrigerant
  • High-efficiency scrollcompressors
  • Two-stage cooling
  • Copper tube / aluminum fin coils(7½ – 10 Ton)
  • Micro-Channel indoor & outdoor coils (12½ Ton)
  • Power block for field wiring
  • High- and low-pressure switches
  • High-capacity, steel-cased filterdrier
  • Heater kits with single-point entry
  • 24-volt terminalstrip
  • Units meet the performance outlined in Table 6.8.1-1 of ASHRAE Standard 90.1-2013
  • AHRI Certified; ETL Listed

 Cabinet Features

  • Heavy-gauge, galvanized- steel cabinet with UV-resistant powder-paint finish
  • Built-in filter rack with standard 2” filters
  • Convertible airflow orientation
  • Easy to service
  • Full perimeter rail
  • Sloped drain pan



Cooling Capacity
Total BTU/h88,000
Sensible BTU/h65,100
EER / IEER11.3 / 13.0
AHRI Reference #s7041910
Evaporator Motor / Coil
Motor Type2-speed Belt Drive
Indoor Nominal CFM3,000
Indoor Motor FLA (Cooling)6.0
Horsepower / RPM2 / 1740-1160
Piston Size (Cooling)0.078
Filter Size (Qty)(4) 16 x 20 x 2
Drain Size (NPT)¾”
R-410A Refrigerant Charge  Cir #1 & #2100 oz.
Evaporator Coil Face Area (ft²)8.9
Rows Deep / Fins per Inch4/16
Belt Drive Evap Fan Data
# of Wheels (D x W)1  (15″ x 12″)
Motor Sheave / Blower SheaveVL40 / AK74
Condenser Fan / Coil
Quantity of Condenser Fan Motors2
Horsepower – RPM¼ – 1075
Fan Diameter / # Fan Blades22 / 4
Outdoor Nominal CFM7,200
Face Area (ft²)28.8
Rows Deep / Fins per Inch2 X2  / 27±1
Quantity / Type / Stage Compressor RLA  / LRA
2 / Scroll / 1
13.1 / 83.1
Electrical Data
Standard Motor Max. External Static1.0″
Outdoor Fan HP / RLA(2) ¼ / 1.4
Min. Circuit Ampacity¹38.4 / 38.4
Max. Overcurrent Protection (amps)²50 / 50
Entrance Power SupplyLocating
Entrance Control VoltageDimple
Operating Weight (lbs)1010
Ship Weight (lbs)1085

Additional information

Weight1085 lbs
Dimensions99.9 × 61.73 × 53.33 in
