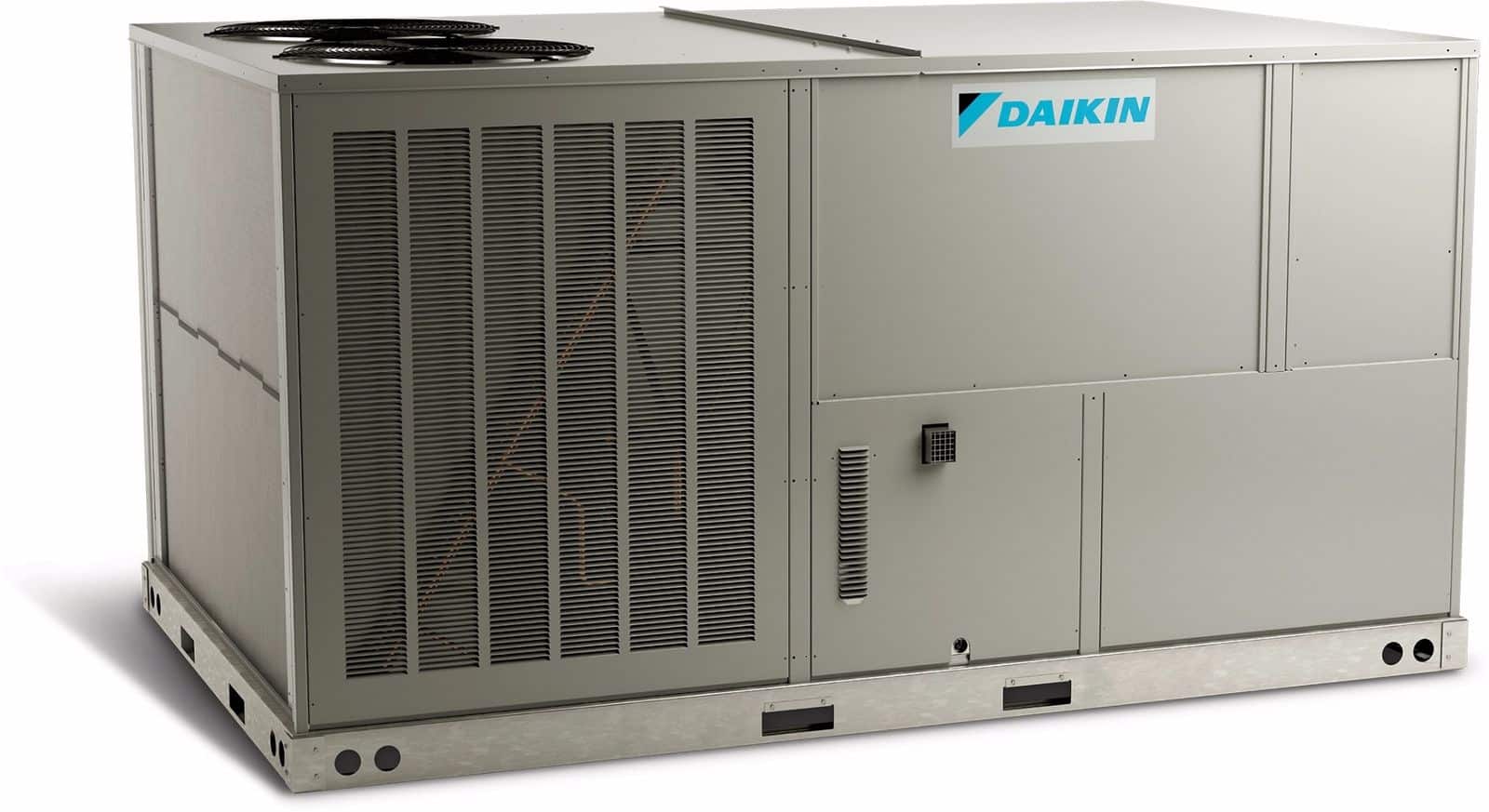

The DCC Packaged Air Conditioner provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations and horizontal or downflow applications.
Dependable compressor One of the most critical components of a packaged air conditioner is the compressor. Daikin brand DCC Packaged Air Conditioners boast high performance, high-efficiency compressors, which operate in tandem with our high efficiency coil. The coil is made of refrigeration-grade copper tubing and aluminum fins in a design that maximizes surface area. These high-quality components together cool effectively. This exceptional construction offers one of our best levels of reliability, durability, and efficiency you’ll find in a compressor.
Heaters, Curbs, and Fresh Air Dampers are sold separately for this system. Please call for pricing.
Call us at (888) 944-8684 or message us to specify the heat strip needed or if other accessories are needed.
|EER / IEER||11.3/13.4|
|ARI Reference #s||7370923|
|Evaporator Motor / Coil|
|Motor Type||2-speed Belt Drive|
|Indoor Nominal CFM||3,200|
|Indoor motor FLA (Cooling)||6.0|
|Horsepower – RPM||2 / 1740-1160|
|Piston Size (Cooling)||0.080|
|Filter Size (Qty)||(4) 16 x 20 x 2|
|Drain Size (NPT)||3/4″|
|R-410A Refrigerant Charge Cir #1 & #2||110 oz|
|Evaporator Coil Face Area (ft²)||10.2|
|Rows Deep / Fins per Inch||4/14|
|Belt Drive Evap Fan Data|
|# of Wheels (D x W)||(1) 15″ x 12″|
|Motor Sheave / Blower Sheave||VL40 / AK74|
|Condenser Fan / Coil|
|Quantity of Condenser Fan Motors||2|
|Horsepower – RPM||¼ – 1,075|
|Fan Diameter / # Fan Blades||22 / 3|
|Outdoor Nominal CFM||8,200|
|Face Area (ft²)||28.8|
|Rows Deep – Fins per Inch||2 X2 / 27±1|
Quantity / Type / Stage Compressor RLA / LRA ea.
|2 / Scroll / 1
14.5 / 98
|Standard Motor Max. External Static||1″|
|Outdoor Fan RLA ea.||1.40|
|Min. Circuit Ampacity¹||41.4 / 41.4|
|Max. Overcurrent Protection (amps)²||50 / 50|
|Entrance Power Supply||Locating|
|Entrance Control Voltage||Dimple|
|Operating Weight (lbs)||1050|
|Ship Weight (lbs)||1125|
