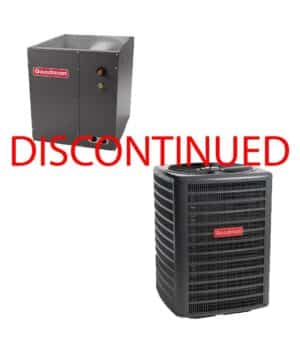

Goodman 2 Ton 14 Seer Air Conditioning Condenser and Coil GSX140241 - CAPF3636A6

$1,532.00
Call for Availability

Compare

Description

Standard Features

• Energy-efficient compressor

• Single-speed condenser fan motor

• Factory-installed filter drier

• Copper tube/aluminum fin coil

• Service valves with sweat connections

and easy-access gauge ports

• Contactor with lug connection

• Ground lug connection

• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with a louvered sound control top

• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

• Steel louver coil guard

• Top and side maintenance access

• Single-panel access to controls with space

provided for field-installed accessories

• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for
hurri- cane-type winds (Anchor bracket kits available.)

  GSX140241
Capacities
Max Cooling (BTU/h)

24,000
SEER/EER 14 / 12
Decibels 74
Compressor
RLA  7.7
LRA 38
Condenser Fan Motor


Hp  1/8
FLA 0.7
Refrigeration System Refrigerant Line Size ¹


 Liquid Line Size (“O.D.)  ⅜”
Suction Line Size (“O.D.)   ¾”
Refrigerant Connection Size Liquid Valve Size (“O.D.)   ⅜”
Suction Valve Size (“O.D.) ² ³ ¾”
Valve Type Sweat
Charge 72
Included piston: 0.057
Electrical Data


Voltage-Phase (60 Hz) 208/230-1
 Minimum Circuit Ampacity ⁴  10.3
Max. Overcurrent Protection  15 amps
Min/Max Volts 197/253
Conduit ½” or ¾”
Equipment Weight
Shipping Weight
126
141

Standard Features

• All-Aluminum evaporator coil

• Optimized for use with R-410A refrigerant

• Some models suitable for use with

R-410A or R-22 refrigerant

• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
applications

• Check flowrator for cooling and heat pump applications

• Vertical and horizontal models available

• 21″ depth for easier attic access

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Rust resistant, thermoplastic drain pans featuring a low water-retention design

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• UV-resistant drain pan

• AHRI certified; ETL listed

Model Unit Dimensions Nominal Tons Connection Piston Size* Ship Weight (lbs)
W D H Liquid Suction
CAPF3636A6 14″ 21⅛” 22″ 3 ⅜” ¾” 0.071 40
