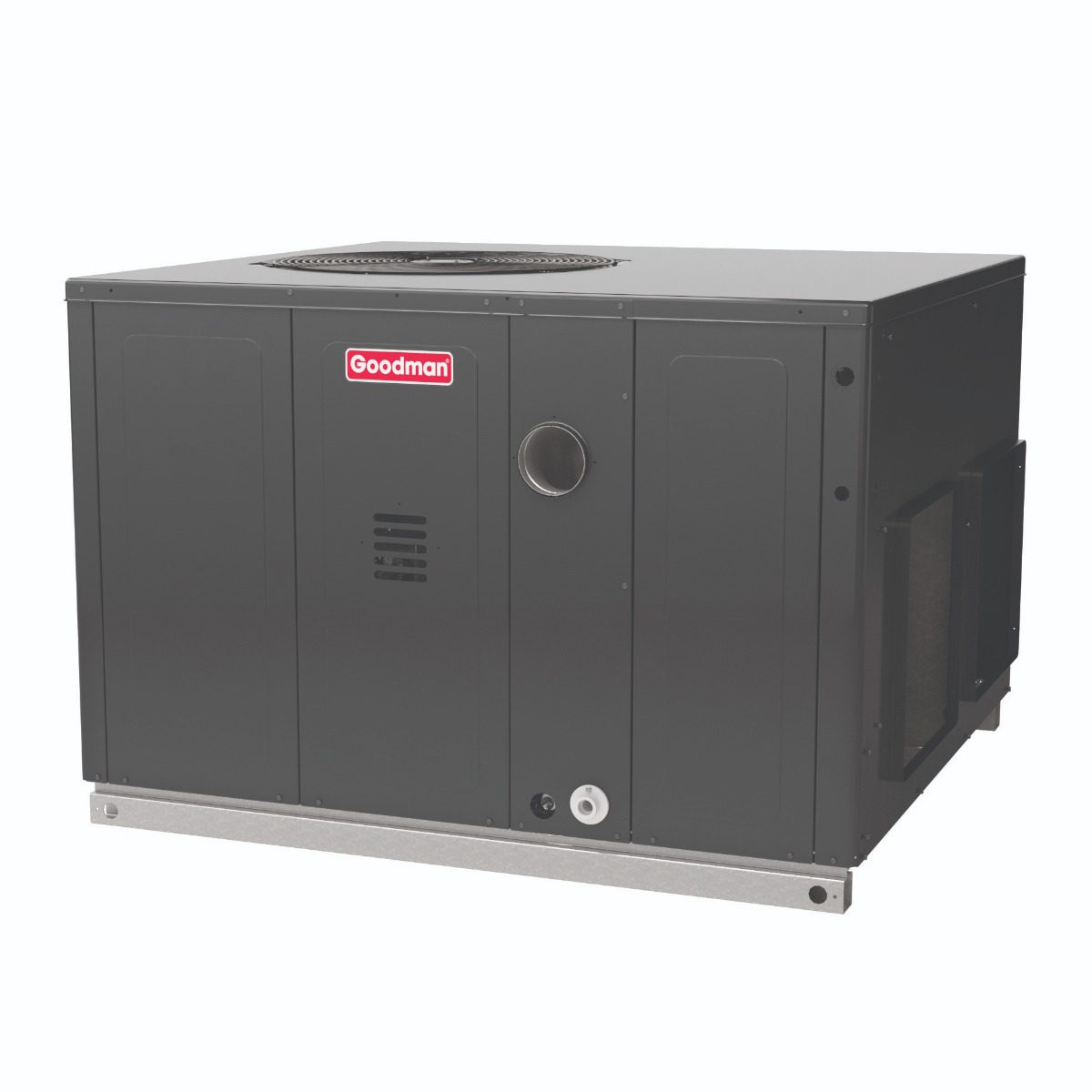

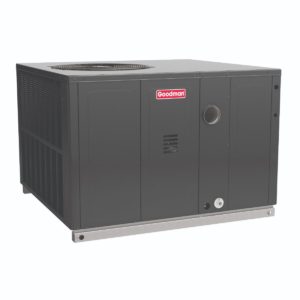

Goodman GPGM33006041 – 2.5 Ton AC – 60,000 BTU Heating, 13.4 SEER2, 81% AFUE Gas/Electric Packaged Unit

You can expect to enjoy lower utility bills with a gas-powered unit. This model is rated with SEER 2, which means it will reduce your energy costs when compared to traditional gas/electric package units. It works well in a home or mobile home and features an internal fan that helps distribute the cool air throughout your home. The unit also has an anti-corrosion coating that helps to protect it from rust and other damage. The unit has a high-efficiency compressor that helps reduce the strain on your system, which can help to extend its life. This is a great option for those who are looking for an affordable option that will keep their home cool in the summer months and warm in the winter months without costing too much money.

The Goodman Gas / electric package unit is a great option for mobile homes, modular homes and other small structures. The unit comes with a high efficiency rating and offers multiple heating and cooling options. It can be used for gas or electric heating and cooling depending on your needs.

Standard Features
• Energy-efficient scroll compressor
• Multi-speed ECM indoor blower motor
• Convertible airflow: horizontal or downflow application
• All-aluminum evaporator coil
• Power-assisted combustion
• Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
• All models comply with California Low NOx standards (40ng/J NOx)
• This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
• AHRI Certified; ETL Listed

Cabinet Features
• High-quality UV-resistant powder-paint finish
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Convenient access panels
• One roof curb fits all units
• Fully insulated cabinet
• Bottom, 2” high base rails for easier handling
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• One footprint for all tonnages

GPGM33006041
Cooling Capacity
Total  BTU/h 28,600
Sensible BTU/h 23,080
SEER / EER 13.4 / 10.6
Decibels 78
AHRI Reference #s 209319526
Heating Capacity (BTU/h)
Input BTU/h 60,000
Output BTU/h 48,600
AFUE 81
Temperature Rise Range 30 - 60
No. of Burners 3
Evaporator Motor
Type ECM
Wheel (D x W) 10” x 8”
Indoor Nominal CFM 1,000
No. of Speeds 5
Horsepower 1/2
Evaporator Coil
Face Area (ft²) 4.35
Rows Deep/Fins per Inch 3/14
Piston Size (Cooling) 0.062
Drain Size (NPT) ¾”
Refrigerant Charge (oz.) 78
Condenser Fan / Coil
Horsepower - RPM 1/4 - 1,075
Diameter / # of Blades 22” / 3
Outdoor Nominal CFM 3,050
Face Area (ft²) 12.3
Rows Deep/Fins per Inch 1/24
Compressor
Quantity / Type 1 / Scroll
Stage Single
Compressor RLA/LRA 14.1 / 73.0
Electrical Data
Voltage-Phase (Frequency 60Hz) 208/230-1
Indoor Blower FLA 3.8
Outdoor Fan FLA/LRA 1.4 / 3.2
Min. Circuit Ampacity ¹ 22.8
Max. Overcurrent Protection ² 35 amps
Operating / Ship Weights (lbs) 420 / 442
Product Documents

$3,570.00

Availability: In stock

-
