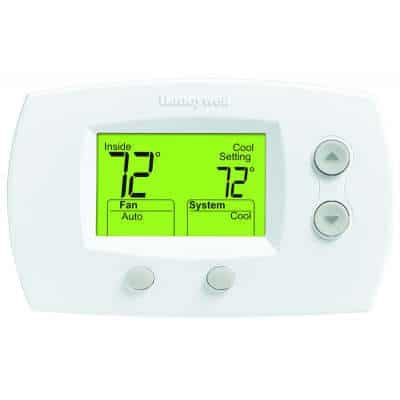

Honeywell TH5220D1029/U Heat Pump Thermostat Non Programmable

SKU: TH5220D1029/U Category: Tags ,

$85.00
Call for Availability

Compare
SKU: TH5220D1029/U Category: Tags: ,

Description

Overview
Honeywell’s FocusPRO® 5000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With an easy-to-read digital display, the FocusPRO 5000 prominently displays both room and set temperature.

Features
Easy-access battery replacement
Displays available in large or standard screen
Up to 3H/2C – conventional and heat pump
Precise comfort control (±1 F) which maintains consistent comfort
Dual-powered (battery and/or hardwire)
5-Year warranty

Product Specifications
Application- Up to 2 Heat/2 Cool Conventional Systems; Up to 2 Heat/1 Cool Heat Pumps
Dimensions (in.)- 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
Dimensions (mm)- 91 mm High X 147 mm Wide X 38 mm Deep
Comments- Large display size 5.09 sq. in.
Item Type- Product
Mounting- Horizontal
Electrical Ratings- 20 to 30 Vac or 750 mV
Frequency- 50 Hz; 60 Hz
Stages- Up to 2 Heat/2 Cool
Operating Humidity Range (% RH)- 5 to 90% RH, non-condensing
Supply Voltage- 20 to 30 Vac; 750 mV
Switch Positions (System)- HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)- AUTO-ON
Power Method- Dual Powered: Battery or Hardwire
Sensor Element- Thermistor
Accuracy (F)- ±1 F
Accuracy (C)- ± 0.5 C
Color- Premier White®
Switch Type- Relay
Terminal Designations- R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L
Changeover- Auto or Manual Selectable
Setting Temperature Range (F)- Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C)- Heat: 4.5 C to 32 C; Cool: 10 C to 37 C- Cycles per Hour
Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current- Y = 0.02 A to 1.0 A running; Y2 = 0.02 A to 1.0 A running
Heat Current- W = 0.02 A to 1.0 A running; W2 (AUX) = 0.02 A to 0.5 A running; E = 0.02 A to 1.0 A running
Fan Current- 0.02 A to 0.5 A running
