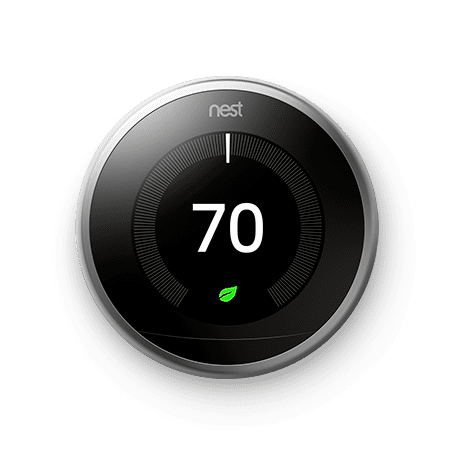

The new 3rd-generation Nest Learning Thermostat is more beautiful than ever, with a thinner, sleeker design and bigger, crisper display. Plus, it’s proven to help save energy. In independent studies, the Nest Thermostat saved an average of 10-12% on heating bills and 15% on cooling bills.
How Does it Work?
No more confusing programming. It learns the temperatures you like and programs itself.
Connect the Nest Thermostat to Wi-Fi to change the temperature from your phone, tablet or laptop.
You’ll see the Leaf when you choose a temperature that saves energy. It guides you in the right direction.
Nest learns how your home warms up and keeps an eye on the weather to get you the temperature you want when you want it.
The Nest Thermostat automatically turns itself down when you’re away to avoid heating or cooling an empty home.
See when heating and cooling were on and what affected your energy use.
Get an alert on your phone or tablet if your home gets dangerously hot or cold.

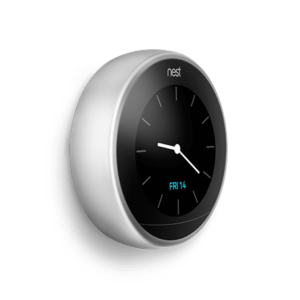

When Nest Thermostat spots you across the room, it lights up beautifully to show you the temperature you’ve set or the time.
Based in Palo Alto, California, Nest takes the unloved products in your home and makes simple, beautiful, thoughtful things.
24-bit color LCD
480 x 480 resolution at 229 pixels per inch (PPI)
2.08 in (5.3 cm) diameter
Size and Weight
Display – Mass: 7.25 oz (205.4 g) – Diameter: 3.3″ (8.4 cm) – Height: 1.06″ (2.69 cm)
Base – Mass: 1.35 oz (38.3 g) – Diameter: 3″ (7.6 cm) – Height: 0.42″ (1.1 cm)
Assembled – Mass: 8.6 oz (243.7 g) – Diameter: 3.3″ (8.4 cm) – Height: 1.21″ (3.08 cm)
Wi-Fi connection with Internet access
Phone or tablet with iOS 8 or later, or Android 4 or later
Free Nest Account
RGB color ring with 6 LEDs
Working Wi-Fi connection: 802.11 b/g/n @ 2.4GHz
Wireless interconnect: 802.15.4b/g/n @ 2.4GHz
Bluetooth Low Energy (BLE)
Built-in rechargeable lithium-ion battery
Less than 1 kWh/month
2-year limited warranty. For help, visit nest.com/support. Our support team is also available by phone 24/7.
What’s in the Box
Optional trim kit
Mounting screws and labels
Nest Pro installation card
The Nest Learning Thermostat works with 95% of 24V heating and cooling systems, including gas, electric, forced air, heat pump, radiant, oil, hot water, solar and geothermal.
Heating: 1,2, and 3 stages (W1, W2, W3)
Cooling: 1 and 2 stages (Y1, Y2)
Heat pump: with auxiliary and emergency heat (O/B, AUX, E)
Humidiﬁer or dehumidiﬁer (HUM, DEHUM) – Fan (G) – Power (C, RH, RC)
For additional questions or concerns regarding this product, please contact the Manufacturer’s Customer Service Department at 1-855-VIP-NEST
Mass: 7.25 oz (205.4 g)
Diameter: 3.3″ (8.4 cm)
Height: 1.06″ (2.69 cm)
Mass: 1.35 oz (38.3 g)
Diameter: 3″ (7.6 cm)
Height: 0.42″ (1.1 cm)
Mass: 8.6 oz (243.7 g)
Diameter: 3.3″ (8.4 cm)
Height: 1.21″ (3.08 cm)
