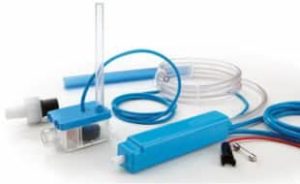

Rectorseal 83809 Aspen Mini Aqua 100 to 230V Air Conditioner Condensate Pump

Features

  • Ultra-slim profile
  • Self Priming
  • Integral hanging loop and separate
    reservoir facilitates attachment in
    vertical applications
  • 3A NC dry contacts rated
    @ 5A inductive at 230V AC
  • Fully potted electronics*

Specifications

Power Supply: 100-250 VAC
Power Consumption: .07-..2A  16W

Duty Cycle:

  • 50% duty cycle
  • 5 mins on / 5 mins off

Capacity:

  • Up to 49,500 BTU/hr.
  • 3.2 GPH @ zero head,
  • 1.6 GPH @ 33ft head

Maximum head: 33ft
Suction lift: 5ft
Sound level: Mini – 24dB(A)
Univolt – 21 bB(A)
Silent Plus – 19dB(A)

Pump Dimensions:
L-61/2” x H-11/8” x W-11/8
