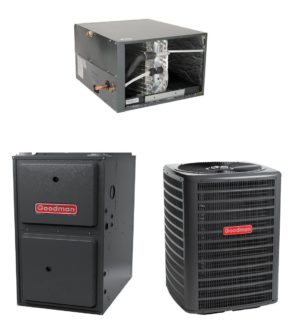

2.5 Ton Goodman 14.5 SEER R410A 96% AFUE 80,000 BTU Two-Stage Variable Speed Horizontal Gas Furnace Split System

Standard Features

• Energy-efficient compressor

• Single-speed condenser fan motor

• Factory-installed filter drier

• Copper tube/aluminum fin coil

• Service valves with sweat connections

and easy-access gauge ports

• Contactor with lug connection

• Ground lug connection

• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with a louvered sound control top

• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

• Steel louver coil guard

• Top and side maintenance access

• Single-panel access to controls with space

provided for field-installed accessories

• When properly anchored, meets the 2010 Florida

Building Code unit integrity requirements for hurri-

cane-type winds (Anchor bracket kits available.)

	GSX140301
Capacities Max Cooling (BTU/h)	30,000
SEER/EER	14 / 12.0
Decibels	74
Compressor
RLA	12.8
LRA	64
Condenser Fan Motor
Hp	1/6
FLA	0.95
Refrigeration System Refrigerant Line Size ¹
Liquid Line Size (“O.D.)	⅜”
Suction Line Size (“O.D.)	¾”
Refrigerant Connection Size Liquid Valve Size (“O.D.)	⅜”
Suction Valve Size (“O.D.) ² ³	¾”
Valve Type	Sweat
Charge	80
Included piston:	0.065
Electrical Data
Voltage-Phase (60 Hz)	208/230-1
Minimum Circuit Ampacity ⁴	17
Max. Overcurrent Protection	25 amps
Min/Max Volts	197/253
Conduit	½” or ¾”
Equipment Weight Shipping Weight	162 180

Standard Features

• All-Aluminum evaporator coil

• Optimized for use with R-410A refrigerant

• Some models suitable for use with

R-410A or R-22 refrigerant

• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
applications

• Check flowrator for cooling and heat pump applications

• Vertical and horizontal models available

• 21″ depth for easier attic access

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Rust resistant, thermoplastic drain pans featuring a low water-retention design

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• UV-resistant drain pan

• AHRI certified; ETL listed

Model	Cabinet Dimensions			Plenum		Nominal Tons	Connection		Piston Size²	Ship Weight (lbs)
	D	W	H	D	H		Liquid	Suction
CHPF3636B6	21⅛”	26″	17½”	19″	16½”	3	⅜”	¾”	0.074	50

Standard Features

• Integrated communicating ComfortBridge™ Technology

• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet
application

• Heavy-duty aluminized-steel tubular heat exchanger

• Stainless-steel secondary heat exchanger

• Two-stage gas valve provides quiet, economical heating

• Durable Silicon Nitride igniter

• Quiet two-speed induced draft blower

• Compatible with any single-stage thermostat

• Self-diagnostic control board with constant memory fault code history output to a triple
7-segment display

• Color-coded low-voltage terminals with provisions for

electronic air cleaner

• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating
or cooling demand

• Multiple continuous fan speed options offer quiet air circulation

• Auto-Comfort and enhanced dehumidification modes available

• All models comply with California 40 ng/J Low NOx emissions standard

• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to
a mitigation fee of up to

$450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:
www.CleanAirFurnaceRebate.com.

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right

• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)

• Easy to install top venting with optional side venting

• Convenient left or right connection for gas and electrical service

• Cabinet air leakage (QLeak) ≤ 2%

• Heavy-gauge steel cabinet with durable baked-enamel finish

• Fully insulated heat exchanger and blower section

• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom
air-inlet applications

	GMVC960803BN
Heating Data
High Fire Input¹	80,000
High Fire Output¹	76,800
Low-Fire Steady-State Input¹	56,000
Low-Fire Steady-State Output¹	53,760
AFUE²	96
Temperature Rise Range (°F)	35 – 65
Vent Diameter³	2″ – 3″
No. of Burners	4
Circulator Blower
Available AC @ 0.5″ ESP	1.5 – 3
Size  (D x W)	11″ x 8″
Horsepower @ 1075 RPM	½
Speed	VS ECM
Electrical Data
Min. Circuit Ampacity⁴	7.8
Max. Overcurrent Device (amps)⁵	15
Shipping Weight (lbs)	120
