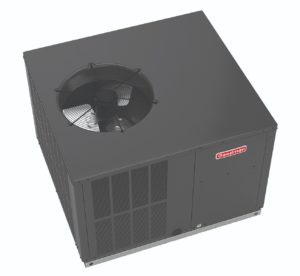

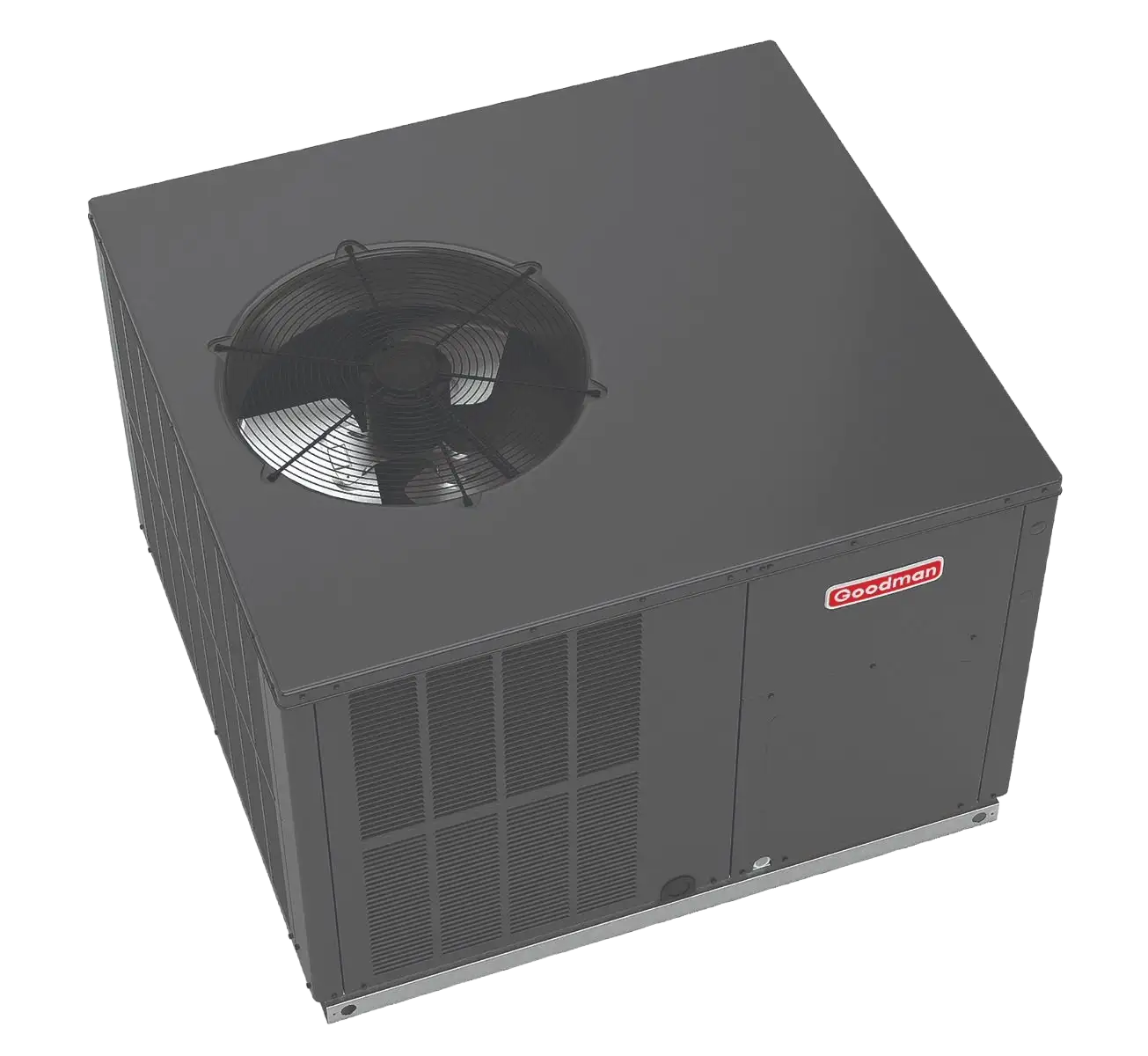

2 Ton 13.4 SEER2 Goodman Heat Pump Package GPHM32441
Standard Features
• Energy-efficient scroll compressor
• Multi-speed ECM indoor blower motor
• Convertible airflow: horizontal or downflow
• Copper tube/aluminum fin condenser coil
• All-Aluminum evaporator coil
• Electric heat kit available as a field-installed option
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Fully insulated air-handling compartment with convenient access panels
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• Louvered condenser coil protection
• One footprint for all tonnages
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for
hurricane-type winds (Anchor bracket kits available.)
| GPHM32441 | |
| Cooling Capacity | |
| Total BTU/h | 24,000 |
| Sensible BTU/h | 18,600 |
| SEER2 / EER2 | 13.4/10.6 |
| AHRI Numbers | 210288029 |
| Heating Capacity | |
| BTU/h (47°F) | 22,800 |
| C.O.P. (47°F) | 3.46 |
| BTU/h (17°F) | 13,200 |
| C.O.P. (17°F) | 2.16 |
| HSPF2 | 6.70 |
| Evaporator Motor | |
| Type | ECM |
| Wheel (D x W) | 10 x 9 |
| Cooling CFM3 | 850 |
| No. of Speeds | 5 |
| Horsepower- RPM | 1/2- 1050 |
| Evaporator Coil | |
| Face Area (ft2) | 4.55 |
| Rows Deep | 4 |
| Fins per Inch | 14 |
| Metering Device Type | Piston |
| Drain Size (NPT) | ¾” |
| Refrigerant Charge (oz.) | 128 |
| Condenser Fan | |
| Horsepower- RPM | ¼- 830 |
| Fan Diameter | 22 |
| # of Fan Blades | 3 |
| Condenser Coil | |
| Face Area (ft2) | 12.08 |
| Rows Deep | 2 |
| Fins per Inch | 16 |
| Metering Device Type | Piston |
| Compressor | |
| Quantity | 1 |
| Type | Scroll |
| Stage | Single |
| Sound Power | 76 |
| dBA | |
| Electrical Data | |
| Compressor RLA/LRA | 12.8 / 58.3 |
| Voltage/Phase (60 Hz) | 208-230/1 |
| Indoor Blower FLA | 3.8 |
| Outdoor Fan FLA | 1.3 |
| M.C.A.1 | 21.4 |
| M.O.P.2 | 30 |
| Shipping Weights (lbs) | 380 |
$3,478.00
Availability: In stock
-
