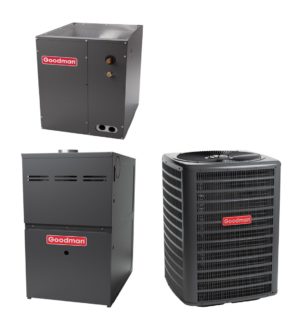

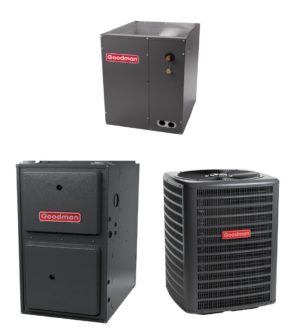

3 Ton 14 SEER 96% 100 kbtu Vertical Goodman AC Gas Furnace System GSX140361+CAPF3743C6+GMES961005CN

SKU: GSX140361+CAPF3743C6+GMES961005CN Categories , Tags , , ,

Out of stock

$3,049.00
Call for Availability

Out of stock

Compare
SKU: GSX140361+CAPF3743C6+GMES961005CN Categories: , Tags: , , ,

Description

Standard Features

• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
Contactor with lug connection
• Ground lug connection
AHRI Certified; ETL Listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2010 Florida
Building Code unit integrity requirements for hurri-
cane-type winds (Anchor bracket kits available.)

GSX140361
Capacities



Nom Cool (BTU/h)36,000
SEER/EER14 / 12
Decibels73
Compressor

RLA14.1
LRA77
Condenser Fan Motor

Hp1/6
FLA0.95
Refrigeration System



Refrigerant Line Size ¹
Liquid Line Size (“O.D.)⅜”
Suction Line Size (“O.D.)⅞”
Refrigerant Connection Size
 Liquid Valve Size (“O.D.)⅜”
Suction Valve Size (“O.D.) ² ³¾”
Valve TypeSweat
Charge81
Included piston:0.068
Electrical Data

Voltage-Phase (60 Hz)208/230-1
Minimum Circuit Ampacity ⁴18.6
Max. Overcurrent Protection ⁵30 amps
Min/Max Volts197/253
Conduit½” or ¾”
Equipment Weight
Shipping Weight
162
180

Standard Features

• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet single-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a LED
• All models comply with California 40 ng/J Low NOx emissions standard
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD)
on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Designed for multi-position installation — GMES96: upflow, horizontal left or right GCES96:
downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting — GMES96/upflow models only
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom
air-inlet applications

GMES961005CN
Heating Data
High Fire Input¹100,000
High Fire Output¹96,100
AFUE²96
Temperature Rise Range (°F)30-60
Vent Diameter³2″- 3″
No. of Burners5
Circulator Blower
Available AC @ 0.5″ ESP3- 5
Size  (D x W)11″ x 10″
Horsepower @ 1075 RPM1
Speed5
Filter Size (in²) (Qty)(1) 20 x 25
(bottom) or (2) 16 x 25
(side)
Electrical Data
Min. Circuit Ampacity⁴13.7
Max. Overcurrent Device (amps)⁵15
Shipping Weight (lbs)140





ModelUnit DimensionsNominal TonsConnectionPiston Size*Ship Weight (lbs)
WDHLiquidSuction
CAPF3743C621″21⅛”30″3-3½⅜”⅞”0.07863

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with
R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed
