4 Ton 14 SEER 80% 100 kbtu Vertical Goodman AC Gas Furnace System GSX140481+CAPF4860C6+GMES801005CN+TXV

SKU: GSX140481+CAPF4860C6+GMES801005CN+TXV Categories , Tags , , , ,

$2,918.00
 Add to Cart for Discounted Price

Out of stock

$2,918.00
 Add to Cart for Discounted Price

Out of stock

Compare
SKU: GSX140481+CAPF4860C6+GMES801005CN+TXV Categories: , Tags: , , , ,

Description

Standard Features
• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2010 Florida
Building Code unit integrity requirements for hurri-
cane-type winds (Anchor bracket kits available.)

GSX140481
Capacities



Nom Cool (BTU/h)48,000
SEER/EER14 / 11.7
Decibels74
Compressor

RLA19.9
LRA109
Condenser Fan Motor

Hp1/4
FLA1.3
Refrigeration System




Refrigerant Line Size
Liquid Line Size (“O.D.)⅜”
Suction Line Size (“O.D.)1⅛”
Refrigerant Connection Size
 Liquid Valve Size (“O.D.)⅜”
Suction Valve Size (“O.D.)⅞”
Valve TypeSweat
Charge101
Included piston:0.078
Electrical Data

Voltage-Phase (60 Hz)208/230-1
Minimum Circuit Ampacity26.2
Max. Overcurrent Protection45 amps
Min/Max Volts 197/253
Conduit½” or ¾”
Equipment Weight
Shipping Weight
220
242



Standard Features

• Heavy-duty aluminized-steel dual- diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD)
on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Installation:
– GMES80-upflow, horizontal left or right
– GCES80- downflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

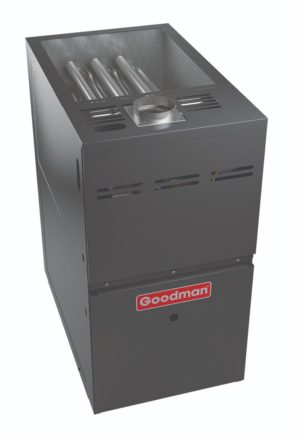

GMES801005C
Heating Capacity
Input100,000
Natural Gas Output80,000
LP Gas Output80,000
AFUE ¹80
Available AC @ 0.5” ESP5
Temperature Rise Range (°F)35-65
Circulator Blower
Size  (D x W)10″ x 10″
Horsepower @1075 RPM0.75
Speed5
Vent Diameter ²4″
No. of Burners5
Electrical Data
Min. Circuit Ampacity ³12.45
Max. Overcurrent Device (amps) ⁴15
Ship Weight (lbs)132




Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

ModelUnit DimensionsNominal TonsConnectionPiston SizeShip Weight (lbs)
WDHLiquidSuction
CAPF4860C621″21⅛”30″4-5⅜”⅞”0.09365
