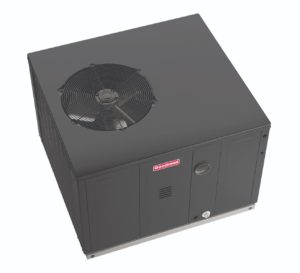

Goodman 4 Ton 16 Seer 100,000 Btu 81% Afue Gas Package Air Conditioner GPG1648100M41

SKU: GPG1648100M41 Categories , Tags ,

$4,509.00

Out of stock

$4,509.00

Out of stock

Compare
SKU: GPG1648100M41 Categories: , Tags: ,

Description

Standard Features

• Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger

• High-efficiency two-stage scroll compressor

• Convertible airflow:

horizontal or downflow application

• Multi-speed ECM indoor blower motor

• Copper tube/aluminum fin condenser coil

• All-aluminum evaporator coil on 2- to 4-ton units

• Aluminum-copper evaporator coil on 5-ton units

• Power-assisted combustion

• Loss-of-charge protection & high-pressure switch

• AHRI Certified; ETL Listed

• Two-stage gas valve; natural gas with easy conversion to propane with accessory kit

• Direct spark ignition system includes a microproces- sor-based control for the entire ignition
sequence

• All blower operation and all safety circuits complete with self-diagnostics

• All models comply with California

Low NOx emission standards

• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to
a mitigation fee of up to

$450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:
www.CleanAirFurnaceRebate.com.

Cabinet Features

• Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish

• Aluminum foil-facing internal insulation reinforced with fiberglass scrim

• Convenient access panels

• One roof curb fits 2-4 ton units

• Bottom, 2” high base rails for easier handling

• 2-4 ton models fit a standard-size pick-up truck

• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for
hurricane-type winds (Anchor bracket kits available.)

• Meets cabinet air leakage requirements when

tested in accordance with ASHRAE standard 193

  GPG1648100M41
Cooling Capacity
Total  BTU/h 45,500
Sensible BTU/h 32,800
SEER / EER 16.0 / 12.0
Decibels 78
AHRI Reference #s 8082386
Heating Capacity (BTU/h)
High-Fire Input / Output 100,000 / 78,000
Low-Fire Input / Output 75,000 / 58,000
AFUE 81
Temperature Rise Range 35 – 65
No. of Burners 5
Orifice Size (Natural/Propane) 45 / 1.25MM
Evaporator Motor
Type ECM
Wheel (D x W) 11” x 10”
Indoor Nominal CFM 1,300
Motor Speed Tap (Cooling) T3 L / T4 H
RPM/Amps (Cooling) 1050 / 5.4
Horsepower 3/4
Evaporator Coil
Face Area (ft²) 5.7
Rows Deep/Fins per Inch 4 / 14
Piston Size (Cooling) TXV
Filter Size (ft²) 5.6
Drain Size (NPT) ¾”
Refrigerant Charge (oz.) 100
Condenser Fan / Coil
Horsepower – RPM 1/4 – 1,075
Diameter / # of Blades 22” / 3
Outdoor Nominal CFM 3,100
Face Area (ft²) 14.4
Rows Deep/Fins per Inch 2 / 27
Compressor
Quantity / Type / Stage 1 / Scroll / 2
Compressor RLA/LRA 21.2 / 104.0
Electrical Data
Voltage-Phase (Frequency 60Hz) 208/230-1
Indoor Blower FLA/LRA 5.4
Outdoor Fan FLA/LRA 1.4 / 2.9
Total Unit Amps 28.0
Min. Circuit Ampacity ¹ 33.3
Max. Overcurrent Protection ² 50 amps
Entrance Size Power Supply 1⅛”
Entrance Size Control Voltage ⅞”
Operating / Ship Weights (lbs) 490 / 500
Energy Star® Certified  Yes
