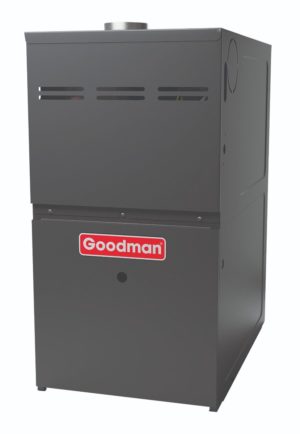

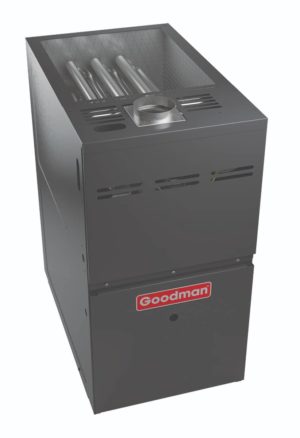

Goodman 60,000 BTU Natural Gas Single Stage Upflow Furnace 80% AFUE GM9S800603BN

Goodman 60,000 BTU Natural Gas Single Stage Upflow Furnace 80% AFUE GM9S800603BN

Standard Features

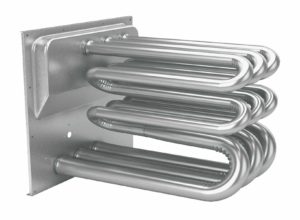

•Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can no longer be installed in California’s
South Coast Air Quality Management District
(SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

Installation:
– GM9S80 -upflow, horizontal left or right
– GC9S80- downflow, horizontal left or right
• Convenient left or right connection for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

GM9S800603BN
Heating Capacity
Input 60,000
Natural Gas Output 48,000
LP Gas Output 48,000
AFUE ¹ 80
Available AC @ 0.5” ESP 3
Temperature Rise Range (°F) 20-50
Circulator Blower
Size  (D x W) 10" x 8"
Horsepower @1075 RPM 0.5
Speed 9
Vent Diameter ² 4"
No. of Burners 3
Electrical Data
Min. Circuit Ampacity ³ 8.7
Max. Overcurrent Device (amps) ⁴ 15
Ship Weight (lbs) 100
Product Documents

$1,012.00

Availability: In stock

-
