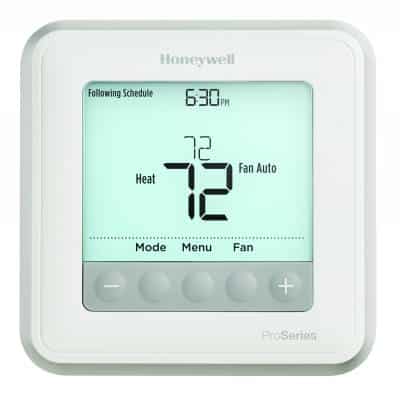

Honeywell TH6210U2001/U Programmable Heat Pump Thermostat

The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.

TH6320U Up to 3H/2C heat pump and 2H/2C conventional
TH6220U Up to 2H/1C heat pump and 2H/2C conventional
TH6210U Up to 2H/1C heat pump and 1H/1C conventional
7-day, 5-2, 5-1-1 or non-programmable
Uses the UWP mounting system that’s standard across all T Series thermostats
Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
Optional dual fuel (TH6320U & TH6220U only)
Optional wired indoor/outdoor sensors (TH6320U & TH6220U only)
Simple push-button functionality
Filter change reminders
5-year warranty

Product Specifications
Application-Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat
Dimensions (in.)- 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm)- 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes- Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Item Type- Product
Mounting- UWP Mounting System
Electrical Ratings- 20 to 30 Vac
Stages- Up to 2 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems
Electrical Connections- Honeywell UWP Mounting System
Operating Humidity Range (% RH)- 5 to 90% RH, non-condensing
Supply Voltage- 20 to 30 Vac
Switch Positions (System)- HEAT-OFF-COOL-AUTO-EM.
Operating Temperature Range (F)- 37 F to 102 F
Operating Temperature Range (C)- 2.7 C to 39 C
Shipping and Storage Temperature Range (F)- -20 F to 120 F
Shipping and Storage Temperature Range (C)- -28.9 C to 48.9 C
LEDs- LED Back Light
Power Method- Battery or Hardwired
Accuracy (F)- 5 F
Accuracy (C)- 0.5 C
Differential Temperature (F)- ± 1 F
Differential Temperature (C)- ± 0.5 C
Interstage Differential Temperature (F)- 1 to 1.5 F Multistage models only
Ambient Temperature Range (F)- 32 F to 120 F
Ambient Temperature Range (C)- 0 C to 50 C
Switch Type- Relay
Programmability- 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display- Large Display, Soft Key Controls
Display Size- 5.44 sq. in.
Temperature Control Mode Selections- Ambient Air Temperature
Changeover- Auto or Manual
Setting Temperature Range (F)- Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C)- Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Heat Current- 0.02-1.0 A
Fan Current- 0.02-.05 A

SKU: TH6210U2001/U Categories , Tags ,
